Web HMI and visualization
Built-in Web HMI / Web SCADA interface for operator panels, live values, operating modes, alarms and service screens.
PLC · Web HMI / SCADA · Data Logger · Historian · RTU · Modbus Gateway — in one compact DIN-rail device.
PLC200 is a programmable logic controller (PLC) for industrial automation, combining rich built-in I/O, Web HMI / Web SCADA, an autonomous Data Logger, a local Historian, RTU functions, a Modbus Gateway and service diagnostics in one DIN-rail device.
PLC200 can simultaneously provide control, visualization, data acquisition, local history and upstream integration.
PLC200 is not intended to be a smaller copy of a large PLC system. The goal is to build, configure, operate and service a small or medium industrial site with one DIN-rail device and a standard Web browser — without a separate heavy engineering environment.
The configuration can be read from the PLC, a local file or the SD card, saved as a backup and loaded again when required. The Web interface also keeps a separate working version, while panel files, images and service backups can be stored on the SD card. Recovery therefore does not depend on proprietary engineering software.
Project documentation generation: PLC200 offers an option to automatically generate project documentation, making project handover, technical maintenance and subsequent changes easier.
PLC200 can establish an outbound connection to a central portal running on Windows or FreeBSD. The remote site does not require a static public IP address, port forwarding or open inbound ports on the router.
Through the tunnel, the portal can provide both Web access to the built-in Web HMI / Web SCADA interface of each controller and Modbus TCP access. A central SCADA system can therefore communicate through the portal with multiple PLC200 controllers installed at different remote sites.
Each PLC200 remains an autonomous local PLC / RTU — control, Web HMI and local data logging continue to operate on site independently of the portal connection.
PLC200 is designed for real-world sites where a standard PLC is not enough, while a separate SCADA system is too heavy in cost, maintenance and infrastructure.
Built-in Web HMI / Web SCADA interface for operator panels, live values, operating modes, alarms and service screens.
A tablet, Panel PC or industrial display with a modern Web browser can operate as the local HMI — without a separate SCADA computer.
Autonomous industrial data logger with microSD, RTC/NTP, daily SQLite archives, trends, charts, tables and CSV export.
FX formulas, PID controllers, manual/automatic mode, Modbus RTU/TCP, email notifications, built-in NTP and specialized calculation functions.
PLC200 combines measurement, control, communications, archiving and Web SCADA in one DIN-rail device, with up to 500 FX positions for formulas and virtual variables. Its rich built-in I/O can reduce the need for separate expansion modules in small and medium-sized installations.
Precision measurement: 8× 24-bit differential AI and 8× 24-bit Pt100/Pt1000 inputs. High-speed inputs: 4× galvanically isolated FDI with TTL/HTL logic and individual 16 Hz / 6 kHz / 290 kHz hardware filtering. Industrial installation: 2× RS485 ports with built-in 120 Ω termination and protected digital outputs with diagnostics.
Level, pressure, flow, pumps, protection signals, counters, archives and alarm notifications.
Temperatures, valves, PID control, operating modes, graphic panels and tuning history.
Modbus communication with power meters, inverters, generators and other energy devices.
Local autonomy, Data Acquisition, Web HMI, alarms, archives and remote maintenance without permanent on-site presence.
Temperature, humidity, atmospheric pressure, wind, rainfall, solar radiation, PM2.5/PM10 and other parameters from Modbus/RS485 sensors.
Level, water quality and other measurements for reservoirs, canals, boreholes and water infrastructure, with local archiving and remote access.
| Feature | PLC200 |
|---|---|
| Processor | 32 bit / 240 MHz |
| Power supply | 24 VDC or PoE (IEEE 802.3af) |
| Communication / Gateway | LAN, WiFi 2.4 GHz, 2× RS485 with built-in 120 Ω termination, Modbus RTU / Modbus TCP, Modbus master and slave operation |
| Network services | DHCP Client & DHCP Server — automatic IP configuration for the controller and assignment of IP settings to devices on the local network |
| Inputs | 8× 24-bit Pt100/Pt1000 TI, 8× 24-bit differential AI, 8× DI, 4× isolated FDI up to 290 kHz (TTL/HTL), up to 100 remote RI |
| Outputs | 8× DO, 2× AO, 2× push-pull PO/PWM up to 100 kHz |
| Control | up to 500 FX positions for formulas/variables, PID, manual/automatic mode, specialized technological functions including API 54 |
| Data Logger / Historian | microSD, RTC/NTP, daily SQLite archives, trends, tables, charts and CSV export |
| HMI / SCADA | Web HMI / Web SCADA through a standard browser — PC, tablet, Panel PC or industrial display |
| Project documentation | Option to automatically generate project documentation |
| Mounting | DIN rail TS35 x 7.5 |
PLC200 can be the core of complete solutions for specific technological tasks. The examples below combine process control, Web visualization, local archiving and remote maintenance in one platform.
PLC200-MPC can be used as a compact solution for motor control panels where automatic start/stop, energy monitoring, alarms and browser-based remote access are required.
The controller measures phase currents through current transformers, monitors motor load and can operate the contactor through a digital output.
Via LAN or WiFi, the operator can view live values, status, alarms and operating modes from a phone, tablet or computer — without a separate SCADA PC.
A solution for greenhouses, orchards, open-field crops and pump stations in which PLC200 manages irrigation, monitors microclimate conditions, stores process data and provides remote access.
The controller can operate pumps, solenoid valves and variable-frequency drives. PID control can maintain the required pressure in drip irrigation or pivot systems.
RTD temperature sensors for soil and air, as well as analog sensors for humidity, EC/pH and pressure, can be connected directly. Weather stations and other field devices can be integrated through Modbus.
PLC200 can operate as a local data concentrator and Web SCADA node for meteorological, agricultural, hydrological and photovoltaic sites using Modbus/RS485 sensors.
Field instruments for temperature, humidity, atmospheric pressure, wind speed and direction, rainfall, solar radiation, PV module temperature, PM2.5/PM10, level and other parameters can be connected to PLC200.
Values are read over Modbus RTU/RS485, displayed through Web SCADA, archived locally and can be exposed to an external SCADA system or a dedicated portal over Modbus TCP.
Compact variant for analog and temperature measurements.

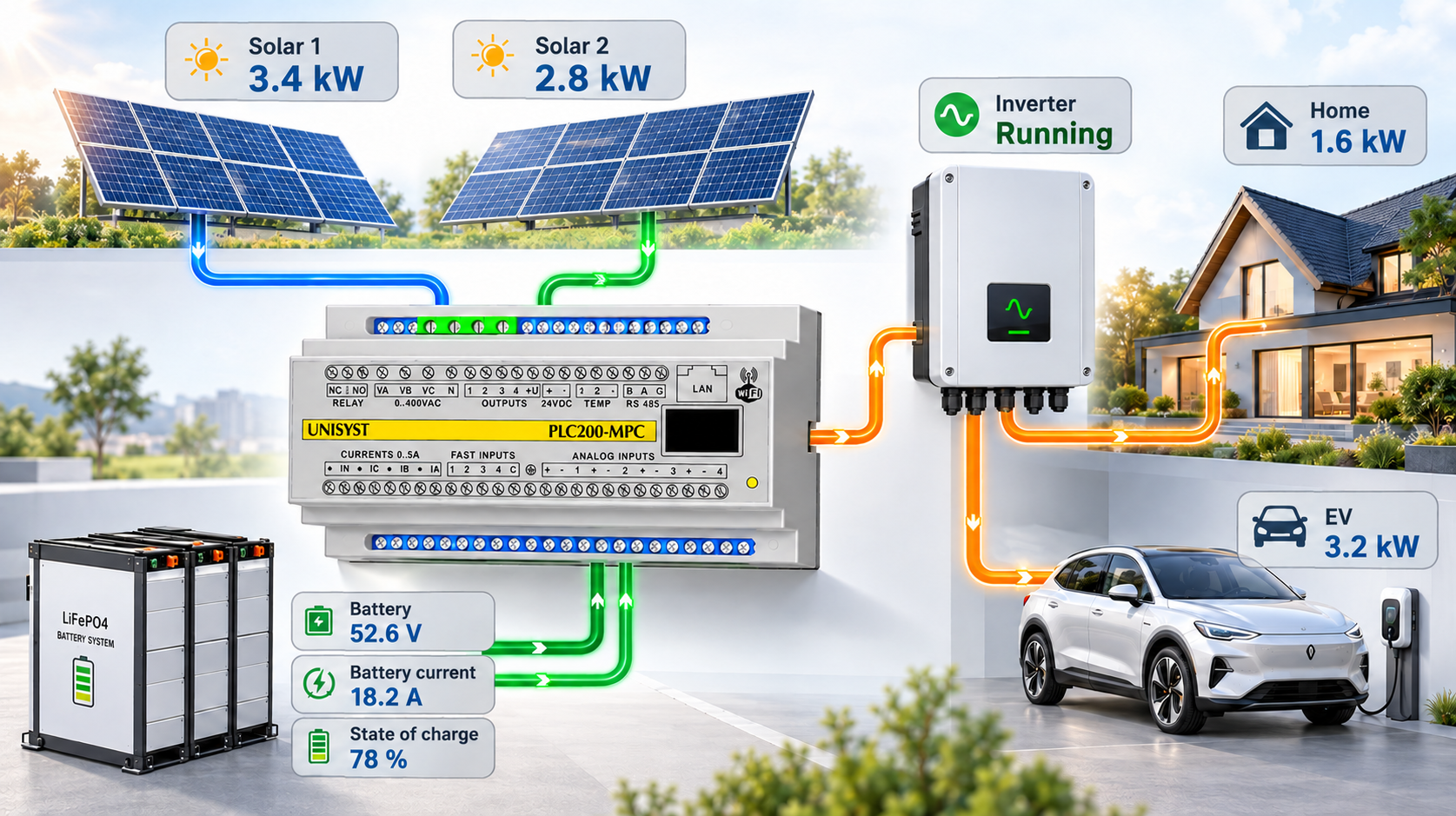

For photovoltaics, generators, micro power plants, pump stations and energy systems.
Smart power meter with Web SCADA, built-in database, LAN/WiFi and microSD archives.
The controller hosts a browser interface with operator panels, process graphics, live values, commands, alarms and charts. Operators use it on the local network; remote access is arranged for the installation when needed.
For local operation, a tablet, panel PC or display with a modern browser can show the PLC200 interface. An external SCADA system can still be connected for larger installations.
Yes. Local PLC logic, I/O, PID control and the Web interface run at the site without an Internet connection. Logging uses a microSD card where process history is required.
Yes. PLC200 can poll field equipment as a Modbus master and make values available to an external SCADA/HMI as a Modbus slave over supported RTU/TCP interfaces. Configuration depends on the system design and register map.
With microSD and RTC/NTP timekeeping, PLC200 stores daily SQLite archives. Operators can view charts and tables in the Web interface and export CSV or download standard DB files.
