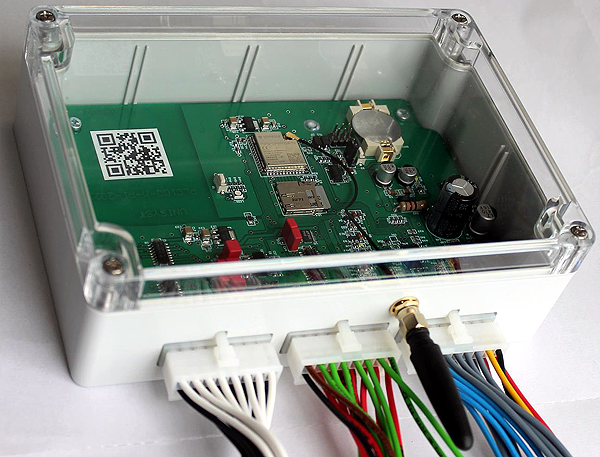

Programmable logical controller PLC 100
– Real-time monitoring and control
- Built-in database – working on SD card, allows use as a data logger
– Built-in WEB SCADA – running on any browser
– Ability to configure users with different rights
– Ability to generate graphical and tabular reports
– Built-in PID regulator with Auto tunning option
– Configuration, setup and visualization without additional software
– Intuitive interface requiring no special knowledge
– An outboard display is optionally available for shield mounting
Technical characteristics of PLC-100 M controller:
- Processor 32 bit, 240 MHz;
- WiFi communication 2.4 GHz. External antenna;
- Operating voltage 24 V DC;
- Consumption 25–15 W depending on the load;
- Data storage – 32 GB Micro SD card;
- Real-time clock with autonomous battery.
I/O Specifications:
| Parameter | Description | Number | Range | Accuracy | More |
| TI | PT1000 temperature input | 8 | 800–1400 Ohm | 0.1 °C | 24 bit ADC scanning rate 1s |
| AI | Current input | 7 | 3–24 mA | 0.01 % | 24 bit ADC scanning rate 1s |
| AI | Current / voltage input | 1 | 0.5–5.0 V DC | 0.01 % | 24 bit ADC scanning rate 1s |
| FDI | Counter / Discrete input | 4 | 0–24 V DC | – | Real-time scanning |
| DO | Discrete output (powered by controller) | 8 | 400 mA / 24 V DC | – | – |
| FX | Virtual position | 100 | – | – | – |
Specifications:
- Output protection;
- Possibility of automatic or manual;
- Ability to enter up to 100 virtual positions for control formulas using incoming signals;
- Interface – Web based. Uses a standard browser installed on a computer or mobile device (laptop, tablet, phone). Works with current versions of Firefox, Chrome, Opera, Safari installed on the mentioned devices;
- Ability to configure all parameters through the web interface;
- Languages – multilingual (4 or more);
- Possibility of remote software update.

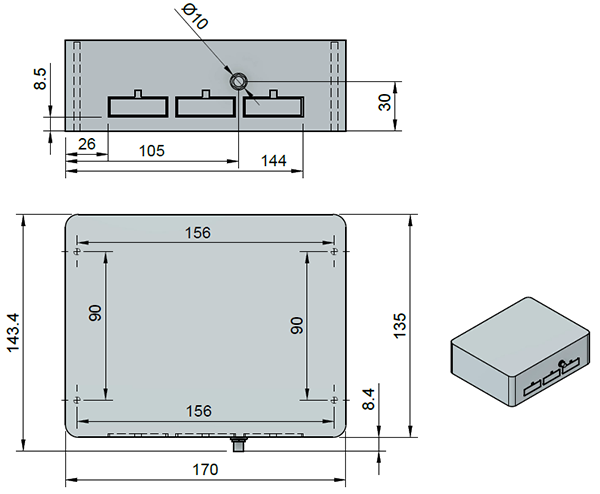

Dimensions:
