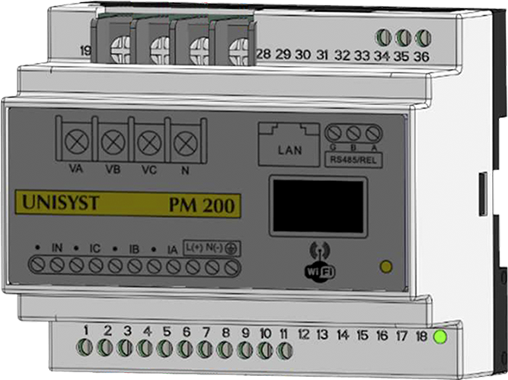

Electricity meter PM 200
– Real-time monitoring and control
- Built-in database – working on SD card, allows use as a data logger
– Built-in WEB SCADA – running on any browser
– Ability to configure users with different rights
– Ability to generate graphical and tabular reports
- Built-in SMTP client – possibility to send e-mail periodically or by event
– Built-in PID regulator with Auto tunning option
– Configuration, setup and visualization without additional software
– Intuitive interface requiring no special knowledge
– Supports LAN network and POE power
– An outboard display is optionally available for shield mounting
The PM 200 is a compact, multi-functional, three-phase AC power meter, specially designed to meet the requirements of all users, ranging from electrical panel manufacturers to substation operators. It has a built-in database to remember the quantities and current values of the parameters. Through a built-in WEB interface and SCADA mode, the data can be visualized on a standard WEB browser regardless of the operating system and hardware – works under Windows, Linux, Android, IOS, etc. Configuration and setup are done through the same interface. Allows detection of energy leaks.
AI READY – prepared for an external AI model
- The web interface formulates a task for an external AI model to generate an initial JSON configuration;
- It prepares operator panel descriptions: labels, values, buttons, images and background layouts;
- Ready-to-use graphic elements plus configuration and panel read/write through the web interface;
- Faster setup and service, without an embedded AI model in the device.
Key advantages
- Integrated web interface and Web SCADA;
- PID controllers for precise process control;
- Built-in mail client for notifications and events;
- LAN, WiFi, RS485, Modbus RTU / Modbus TCP;
- Remote software update;
More from the same series
- PLC200-AI – compact version for analog and temperature measurements;
- PLC200-MPC – for photovoltaic, generator and energy systems, pumping systems;
Technical characteristics of electricity meter PM 200
- Processor 32 bit, 240 MHz;
- LAN communication, WiFi 2.4 GHz, internal antenna;
- Power supply: 85–305 V AC 50/60 Hz, 120–430 V DC;
- Consumption < 2 W;
- Data storage: 32 GB micro SD карта;
- Real time clock;
- Display: 0.96" OLED, diode-matrix graphic display, resolution 128×64 points;
- Dimensions without wiring (W×H×D) 105×86×57 mm;
- Weight: 0.2 kg;
- Mounting: standard Euro DIN rail TS 35×7.5;
- Operating temperature: -30 °C to 60 °C;
- Storage temperature: -30 °C to 85 °C;
- Humidity: 0 to 95% non-condensing;
- Protection class IP 20;
- Flammability class: UL94-V0;
- Case body: polycarbonate; box base: modified PPE.
I/O Specifications
| Parameter | Description | Number | Range | Accuracy |
| Uabc | Voltage measurement input | 3 | 0÷400 V AC | ±0.2 % of full scale |
| Iabcn | Current measurement input | 4 | 0÷5 А AC | ±0.2 % of full scale |
| DO | Discrete (digital) output | 1 | Relay output | – |
| RI | Remote inputs/outputs | 100 | – | – |
| FX | Virtual positions for formulas or variables | 200 | – | – |
| LAN | Remote access | 1 | 10/100 Mbps | – |
| WiFi | Remote access | 1 | 2.4 GHz, AP, STA | – |
| Serial | Read/write to remote devices | 1 | RS485 | – |
Specifications
- Compliance with standards: RED 2014/53/EU и RoHS2 2011/65/EC;
- Accuracy class: 0.2S;
- Allows the application of IEC 61000-4-30 class S;
- Meets the requirements for measuring active and reactive energy: IEC 62053-21, IEC 62053-22, IEC 62053-23, IEC 62053-24, EN50470-3, OIML R46 и ANSI C12.20;
- Radio frequency spectrum: Compliance with the European Harmonized Standard for 2.4 GHz, ETSI 300 328 V2.2.2.
