Tire Pressure Monitoring System of trucks (TPMS)

A good solution for trucks, that can save you not only costs

Timely reaction to a tire problem – low/high pressure or temperature can save not only the tire, but also you!

We offer you a good system for monitoring the condition of your truck's tires in real time.

The proposed system has the following advantages:

1. It works in real time.
2. Responds quickly and informs about a problem in a timely manner without distracting you from the road.
3. You can define the limits for signaling yourself.
4. You can safely inflate your tires at any gas station without worrying that the pressure gauge readings may not be accurate.
5. No specialized technical means or knowledge is required to install the system.

Keeping the tire pressure at the required values has advantages such as:

• Shorter braking distance.
• Easier handling and travel comfort.
• Even wear and longer tire life.

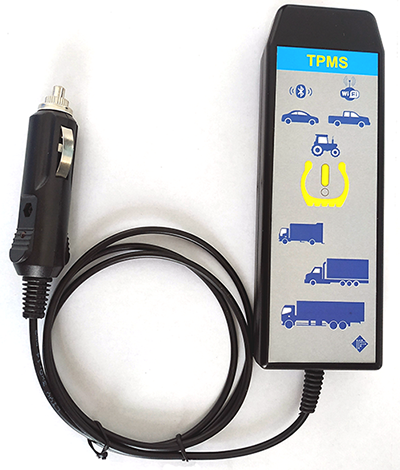

TPMS/CTIS module

• Monitors and visualizes pressure and temperature of truck's tires;
• Monitors and visualizes battery status and signal strength from each sensor;
• Intuitive interface for monitoring and control;
• Supports up to 6 axes;
• Supports up to 4 tires per axle;
• Measures of compressor pressure;
• Measures of spare tire pressure;
• Ability to control up to 24 pneumatic valves/relays;
• Ability to automatically maintain tire pressure;
• Ability to manually manage tire pressure;
• Ability to set 20 pre-configured modes;
• Possibility of automatic compressor control;
• Possibility of manual compressor control;
• Visual and sound signaling when tire pressure is outside the set values for each mode;
• Ability to configure all parameters through a web interface;
• Possibility of remote software update;
• Interface – web based. Uses a standard browser installed on a computer or mobile device (laptop, tablet, phone). Works with current versions of Firefox, Chrome, Opera, Safari installed on the mentioned devices;
• WiFi communication – 2.4 GHz;
• Operating voltage 12-36 VDC;
• Maximum consumption 300 mA;
• Communication with the sensors - Bluetooth 5.0 (25 meters);
• Languages – multilingual (4 or more);
• Ability to connect modules placed on trailers;
• Record daily archive files with all changes in pressure, temperature, battery, alarm events and management history;
• Data storage – 32 GB SD card;
• Real time clock.

Sensors

• Power supply – autonomous battery 3 V;
• Communication – Bluetooth 5.0, power 8 mW;
• Operating frequency of Bluetooth (2400 to 2483.5 MHz);
• Waterproof standard: IP67;
• High sensitivity of the sensor – reports changes in pressure above 1 kPa (0.01 Bar);
• Pressure measurement range – from 5 to 1800 kPa;
• Accuracy of pressure measurement – ±10 kPa;
• Type of measurement – relative pressure;
• Tire temperature detection accuracy – ±3 °C;
• Operating temperature – from -30 °C to +80 °C.
